230V Flight Case + Lighting Balloon

Energy Flight Case (FCA0004)

Portable system including a 110W fuel cell, a lighting balloon and supplying 230V


Technical Specifications :

> Peli branded black case, 1630 model :
  • External sizes : 79,4 x 61,5 x 44,4cm
  • Internal sizes : 70,3 x 53,3 x 39,4cm
  • IP67

  • Equipped with wheels and handles, built-in trolley system

  • Depressurization system
  • Padlock locking available (padlock not included)
> 2400 Fuel Cell
  • Load capacity : 2400 Wh per day
  • Nominal power : 110 W
  • Nominal voltage : 12 V
  • 12V-Battery capacity : from 60 to 350A
  • Weight : 9,3 kg
  • Sizes : 433 x 188 x 278 mm

Nominal consumption : 0,9 l/kWh



> A Methanol load switch, that allows to switch automatically from one can of methanol to the other.


> 2 cans (10 liters) of methanol



> 1 sealed gel lead battery (12V 60Ah)


> 1 incorporated watertight female output (12V) with the relevant plug

> 1 fan et 1 thermostat to regulate the internal temperature and prevent from overheating

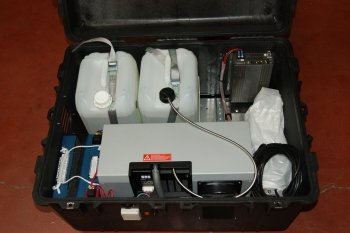

Photo for information purpose only

> 1 lighting balloon (12 V / 50 W / 6 A), diffusing an omnidirectional 360-degree light, non-glaring and non-shading. Lighting surface : 450 m².

Magnet base included



> 1 external 12V oulet to connect the balloon with the case closed.


>1 DC/AC SINUS 212 converter​
  • - Input : 12 Vdc (10,5V 0 15Vdc)
  • - Output : 230 Vac
  • - Power : 200 W
  • - Sizes : 205 x 158 x 59 mm
  • - Weight : 1,63 kg
> 1 external sealed socket (230 V / 50 Hz)
> 1 external sealed On/Off switch with warning light

> Weight of the unit : 63 kg
