12V Flight Case + Lighting Ballon

12V Energy Flight Case equipped with a lighting balloon (FCA0002)

The FCA0002 has a 12-day lifetime, for 24 running hours a day.


Technical Specifications :

> Peli branded black case, 1630 model :
  • External sizes : 79,4 x 61,5 x 44,4cm
  • Internal sizes : 70,3 x 53,3 x 39,4cm
  • IP67
  • Equipped with wheels and handles, built-in trolley system
  • depressurization system
  • Padlock locking available (padlock not included)
> 2400 Fuel Cell
  • Load capacity : 2400 Wh per day
  • Nominal power : 110 W
  • Nominal voltage : 12 V
  • 12V-Battery capacity : from 60 to 350 Ah
  • Weight : 9,3 kg
  • Sizes : 433 x 188 x 278mm

Nominal consumption : 0,9 l/kWh


> A methanol load switch, that allows to switch automatically from one can of methanol to the other.

> 2 cans (10 liters) of methanol

> 1 sealed gel lead battery (12V 60Ah)

> 1 incorporated sealed female output (12V) with the relevant plug

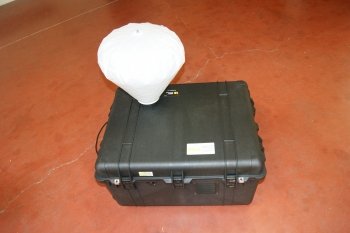

Photo for information purpose only



  > 1 fan and 1 thermostat to regulate the internal temperature and prevent from overheating

> 1 lighting balloon (12 V / 50 W / 6 A), diffusing an omnidirectional 360-degree light, non-glaring and non-shading. Lighting surface : 450 m². Magnet base included

> An external 12V outlet to connect the balloon with the case closed.


Weight of the unit : 61 kg
