12V Energy Flight Case

12V Energy Flight Case (FCA0001)

Circa 16 days lifetime
Technical Specification :

> Peli branded black case, 1630 model :
  • External sizes : 79,4 x 61,5 x 44,4cm
  • Internal sizes : 70,3 x 53,3 x 39,4cm
  • IP67

  • Equipped with wheels and handles, built-in trolley system

  • Depressurization system
  • Padlock locking available (padlock not included)
> 2400 Fuel Cell
  • Load capacity : 2400 Wh per day
  • Nominal power : 110 W
  • Nominal voltage : 12 V
  • 12V-Battery capacity : from 60 to 350 Ah
  • Weight : 9,3 kg
  • Sizes : 433 x 188 x 278mm

Nominal consumption : 0,9 l/kWh


> A methanol load switch, that allows to switch automatically from one can of methanol to the other.

> 2 cans (10 liters) of methanol

> 1 sealed gel lead battery (12V 60Ah)

> 1 incorporated sealed female output (12V) with the relevant plug

> 1 fan and 1 thermostat to regulate the internal temperature and prevent from overheating

Total weight of the unit : 59 kg

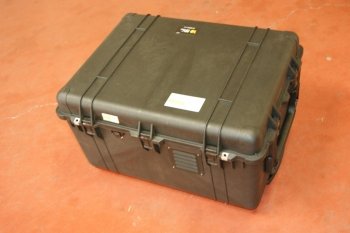

Photo for information purpose only
