Battery chargers

Our battery chargers

Our range of 12V, 24V and 48V devices


Our range of battery chargers works on the basis of high frequency switch mode. This operating mode brings more efficiency and takes up less space.

The charge is « floating » type. This principle allows you to charge the battery and to hold a slight maintenance current when the batteries are loaded.

Technical Specifications :

> Power supply : 230 Volts ± 15%, 50/60 H
  • Protect
  • Limitation of in-rush current when starting up
  • RFI filters
> Electronic protections against :
  • Short-circuits
  • Polarity reversal
  • Overloads
  • Thermal rises
> Typical average output (depending on the model): 88%
> Dwell time after mains power out : 20 ms
> Cooling by natural convection or by forced ventilation for strong powers
> Storage temperature : from -25°C to 85°C
> Application temperature : from -10°C to 60°C
> Compliance with EC Standards




Available models :

12V Range :

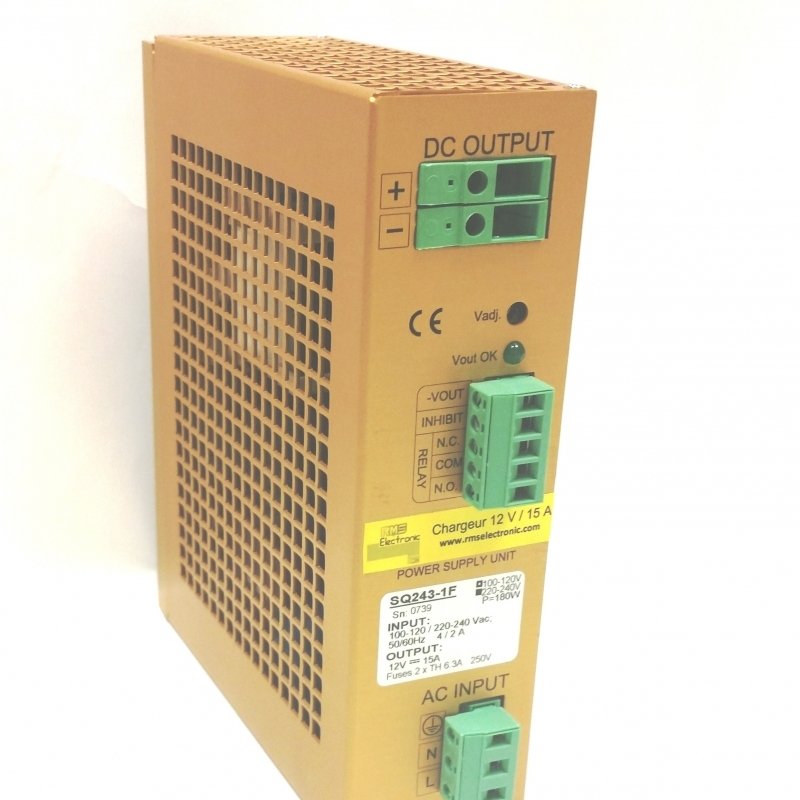

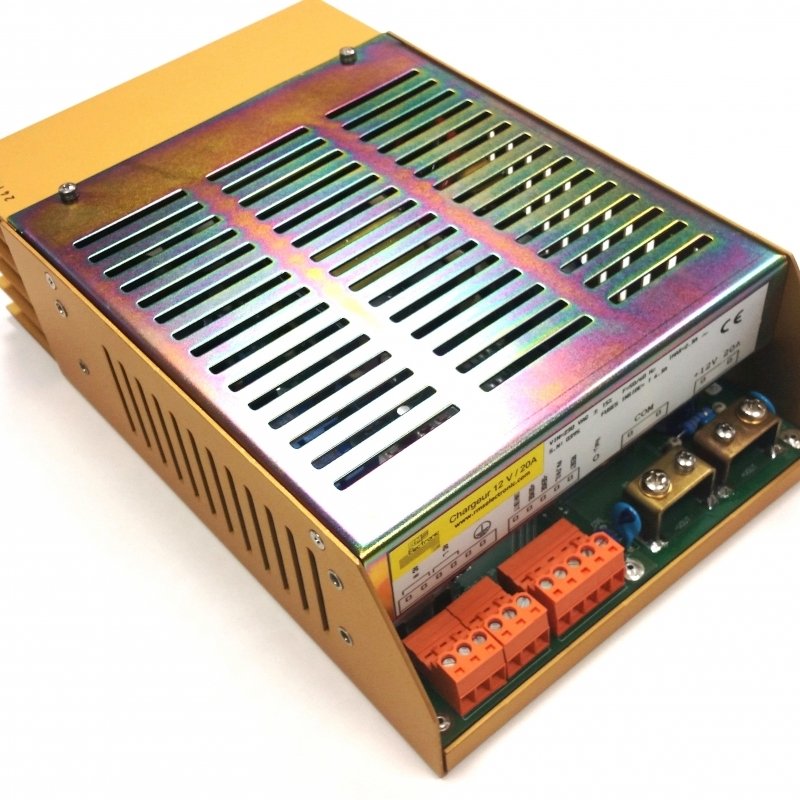

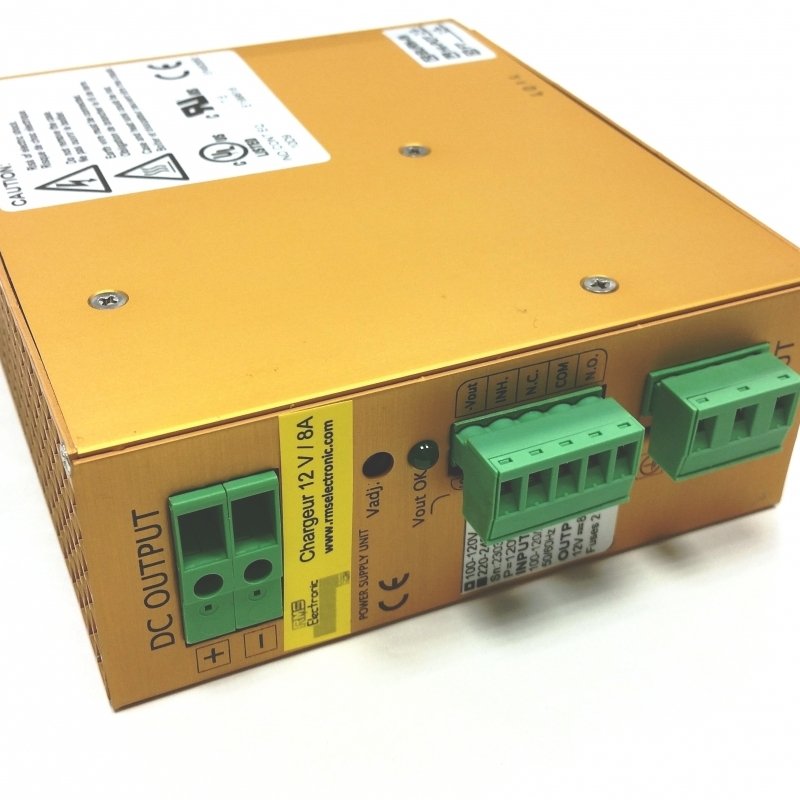

Charging current : 8A - 15A - 20A - 30A and 60A
24V Range :

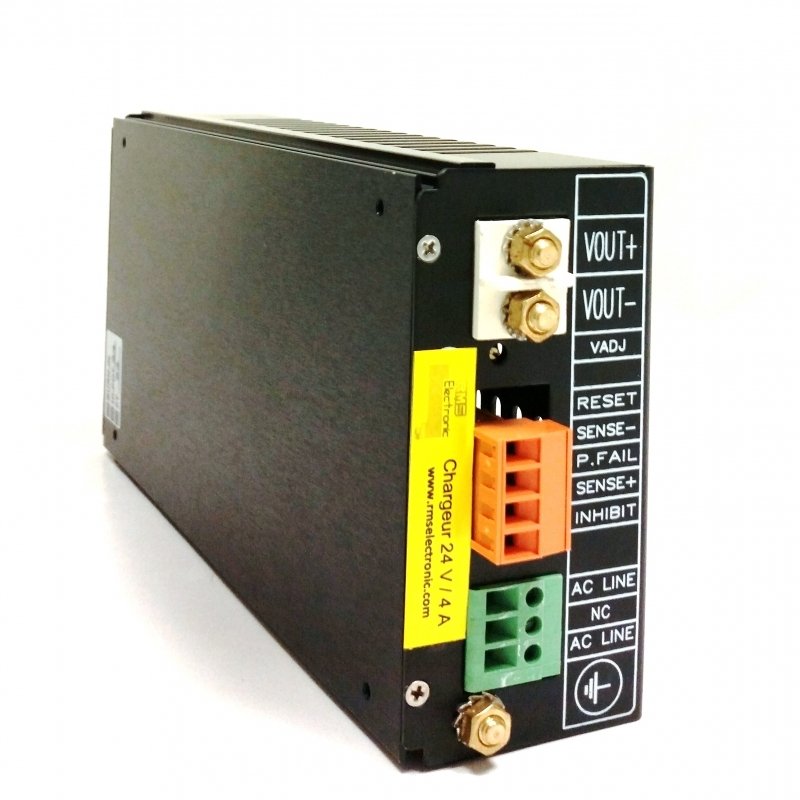

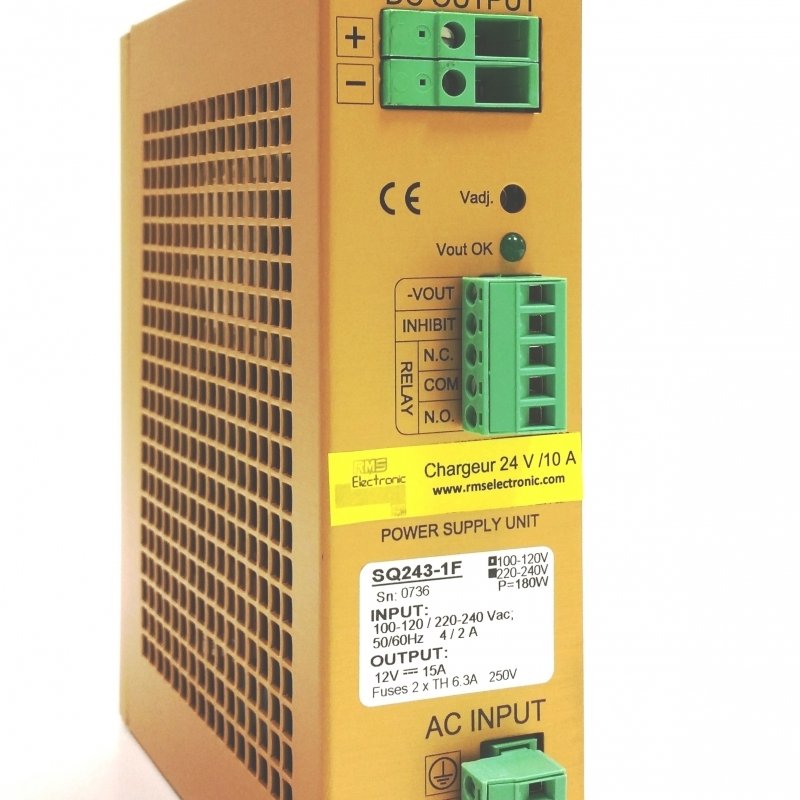

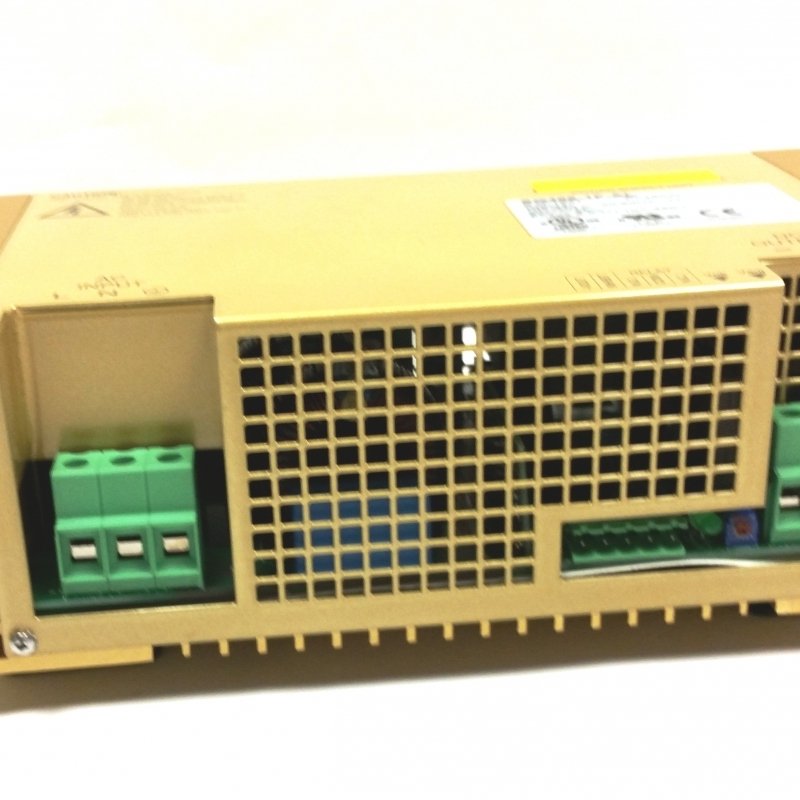

Charging current : 5A - 10A - 20A - 40A and 50A
48V Range :
Charging current : 2.5A - 5A - 10A - 20A and 25A

Presentation in a box or on a 19'' rack also available
For other voltages and power : contact us
